AS81824/1 Crimp Splices

Product Rollup

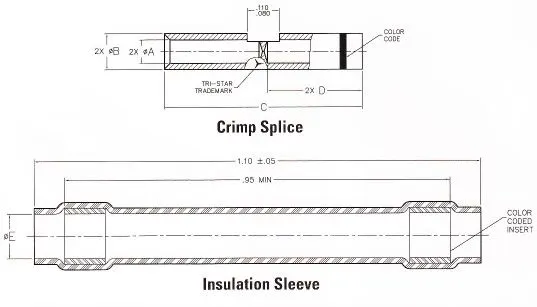

Item #	AWG Range	Inner Dia. (A)	Outer Dia. (B)	Length (C)	Finish
H-C2005G	20-26 AWG	0.050 to 0.045 in	0.080 to 0.075 in	0.510 to 0.490 in	Gold
H-C2005S	20-26 AWG	0.050 to 0.045 in	0.080 to 0.075 in	0.510 to 0.490 in	Silver
H-C2005T	20-26 AWG	0.050 to 0.045 in	0.080 to 0.075 in	0.510 to 0.490 in	Tin
H-C1605G	16-18 AWG	0.069 to 0.064 in	0.106 to 0.101 in	0.585 to 0.565 in	Gold
H-C1605S	16-18 AWG	0.069 to 0.064 in	0.106 to 0.101 in	0.585 to 0.565 in	Silver
H-C1605T	16-18 AWG	0.069 to 0.064 in	0.106 to 0.101 in	0.585 to 0.565 in	Tin
H-C1205G	12-14 AWG	0.102 to 0.097 in	0.153 to 0.147 in	0.585 to 0.565 in	Gold
H-C1205S	12-14 AWG	0.102 to 0.097 in	0.153 to 0.147 in	0.585 to 0.565 in	Silver
H-C1205T	12-14 AWG	0.102 to 0.097 in	0.153 to 0.147 in	0.585 to 0.565 in	Tin
