Product #: SS-H-C-112

Material: Sn63SRMAP2 solder (#58, rosin core)Heat shrinkable semi-rigid polyvinylidene fluoride Kynar, clear per MIL-I-23053/18

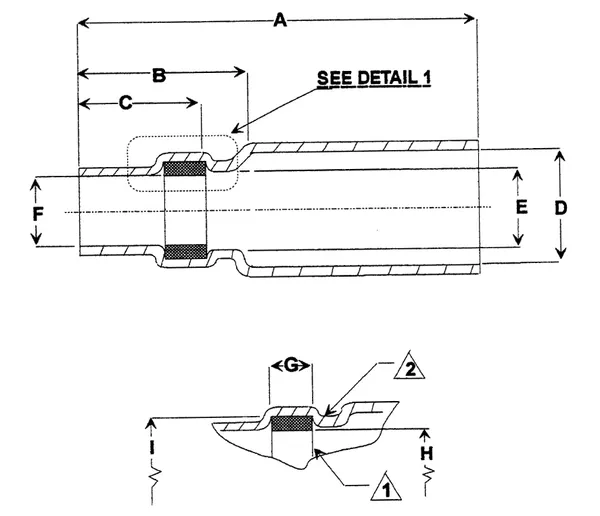

Constructional Details

Min. A 0.295 in
A Tolerance ±0.025 in
Min. B 0.190 in
Min. C 0.155 in
C Tolerance ±0.015 in
Min. D 0.082 in
Min. E 0.078 in
E Tolerance ±0.010 in
Max. F 0.076 in
Min. G 0.040 in
G Tolerance ±0.004 in
Min. H 0.075 in
H Tolerance ±0.001 in
Min. I 0.091 in
I Tolerance ±0.001 in
