H-C4 Series Termination Sleeves

Termination Sleeves

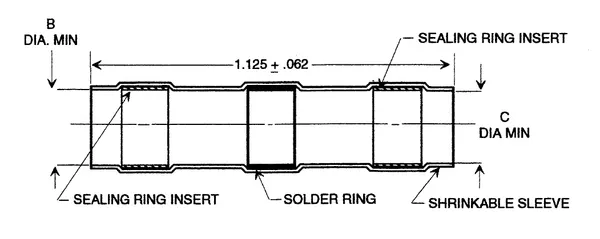

1744 type immersion resistance splice.

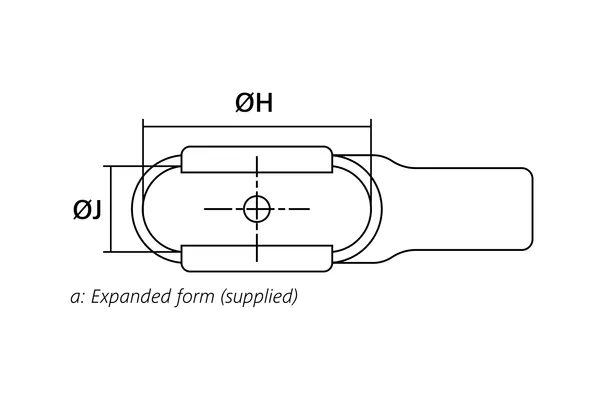

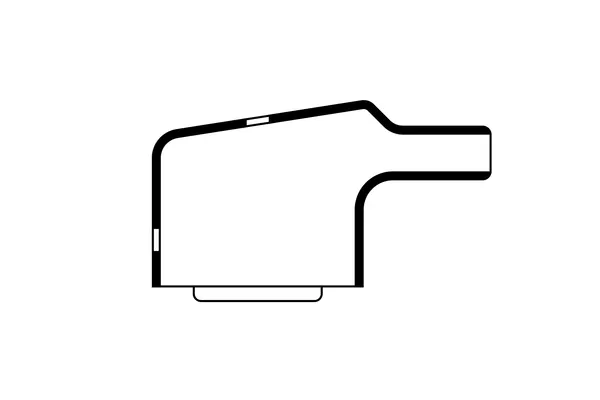

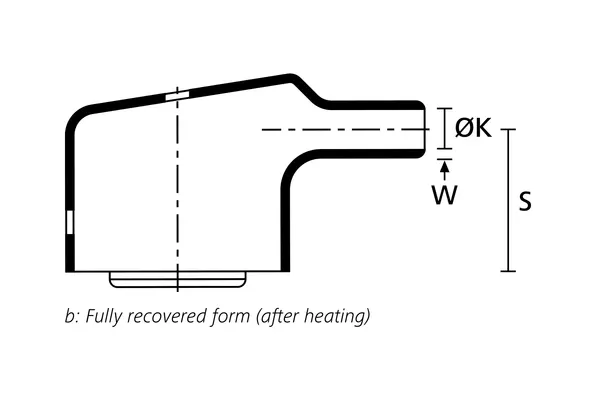

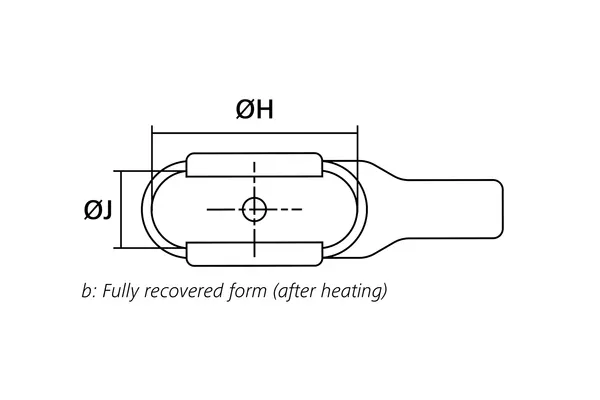

Helashrink 2100 series 90° connector cover providing strain relief and mechanical protection for Min-D connectors Helashrink 2100 series 90° connector cover providing strain relief and mechanical protection for Min-D connectors Termination Sleeves Technical drawing showing the expanded supplied top view of a 90° heat shrink connector cover for Min-D connectors Overview diagram of Helashrink 2100 series 90° entry heat shrink connector cover for Min-D connectors Technical drawing showing the expanded supplied side view of a 90° heat shrink connector cover Technical drawing showing the fully recovered side view of a 90° heat shrink connector cover Technical drawing showing the fully recovered top view of a 90° heat shrink connector cover Technical drawing showing the end view and key dimensions of a 90° heat shrink connector cover for Min-D connectors

Product Rollup

Item # NAS Part # Min. B Min. C
SS-H-C4-2 1745-1 0.110 in 0.125 in
SS-H-C4-1 1744-1 0.75 in 0.095 in
SS-H-C4-3 1745-2 0.180 in 0.200 in
SS-H-C4-4 1745-3 0.280 in 0.300 in
