L-C Termination Sleeves
Product #: SS-L-C-2-10
NAS 1745 low temp convection termination sleeve.

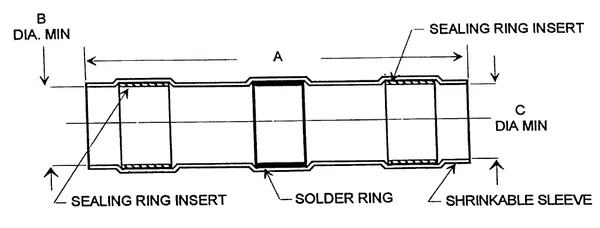

Constructional Details
| Min. A | 0.625 in |
| A Tolerance | ±0.062 in |
| Min. B | 0.110 in |
| Min. C | 0.125 in |
| Conductor Type | Tinned |
| Silver | |
| Solder Ring / Flux | CD 18 SRMAP |
| Per QQ-S-571 | |
| Insert Color | 2 Blue |
| Marking Code | 2S |
Material
| Sealing Ring Insert | Thermally Stabilized, Meltable, Thermoplastic |
| Solder Ring | As Tabulated |
| Shrinkable Sleeve | Expanded, Transparent, Irradiated Polyvinylidene Fluoride, Blue Tint |
