WX150 Expandable Braided Sleeve
Expandable Braided Sleeving
WX150 is an expandable, flame retardant braided sleeve used on cable assemblies, wire harnesses and hoses. It is made from tough, abrasion resistant, flame retardant polyester monofilament fibers which are resistant to most solvents and hydro-carbons, such as jet fuels, gasoline, diesel fuels, hydraulic fluids and cleaning fluids. The open weave design not only allows it to be extremely flexible but also allows for complete drainage thus preventing moisture and mildew buildup. WX150 is an excellent choice anywhere abrasion protection and flame retardant standards are required at economical price.

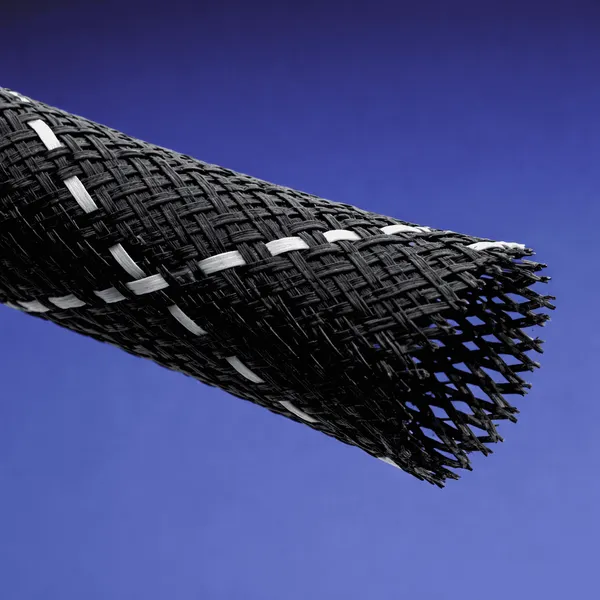

![[ai] WX150 expandable braided sleeve made from flame retardant polyester](https://fdhelectronics-images-staging-sin.programmatically.xyz/insecure/w:600/rs:fit/czM6Ly9mZGgtc3Ry/YXBpLXN0YWdpbmcv/V1hfMTUwXzRhYWY4/MWU0ODYucG5n.webp)
Product Rollup
| Item # | Operating Temperature | Nom. Monofilament Diameter | Nom. Wall Thickness | Nom. Inner Diameter | Size Range |
|---|---|---|---|---|---|
| WX150-1-1/4 | -94 to 25 ºF | 0.009 in | 0.025 in | 1-1/4 in | 3/4 to 1-1/2 in |
| WX150-1/2 | -94 to 25 ºF | 0.009 in | 0.025 in | 1/2 in | 1/4 to 3/4 in |
| WX150-1-3/4 | -94 to 25 ºF | 0.009 in | 0.025 in | 1-3/4 in | 1-1/4 to 2-3/4 in |
| WX150-1/4 | -94 to 25 ºF | 0.009 in | 0.025 in | 1/4 in | 1/8 to 3/8 in |
| WX150-1/8 | -94 to 25 ºF | 0.009 in | 0.025 in | 1/8 in | 3/32 to 1/4 in |
| WX150-2-1/2 | -94 to 25 ºF | 0.009 in | 0.025 in | 2-1/2 in | 1-3/4 to 4 in |
| WX150-2 | -94 to 25 ºF | 0.009 in | 0.025 in | 2 in | 1-1/2 to 3 in |
| WX150-3/4 | -94 to 25 ºF | 0.009 in | 0.025 in | 3/4 in | 1/2 to 1-1/4 in |
| WX150-3/8 | -94 to 25 ºF | 0.009 in | 0.025 in | 3/8 in | 3/16 to 5/8 in |
